The pitch
Image generation tools are built around one prompt at a time. You type a prompt, you get four images, you tweak the prompt, you get four more. That works for play. It falls apart the moment you want a reproducible pipeline — same input, same transforms, predictably different outputs.

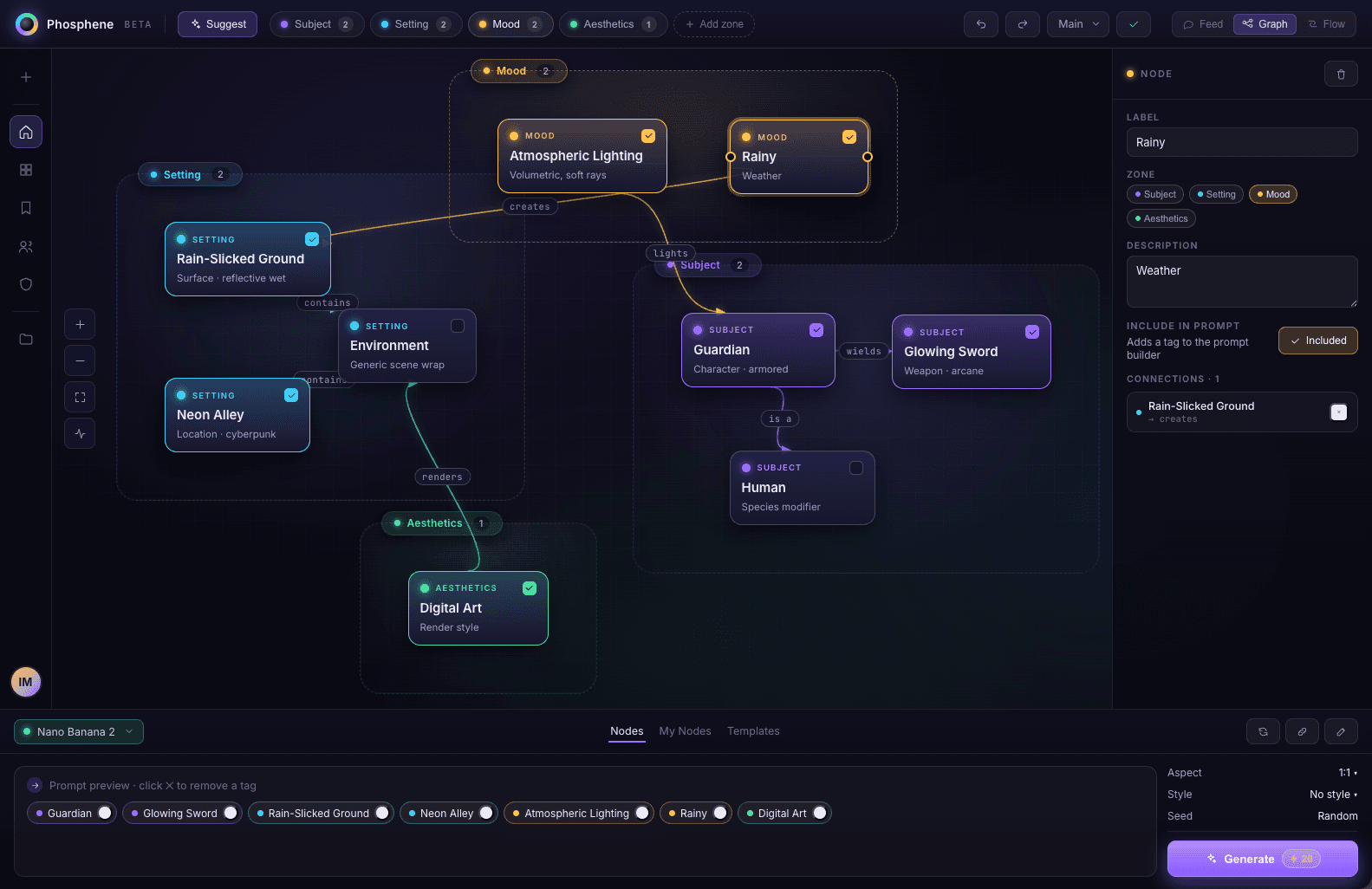

Phosphene replaces the prompt box with a graph. Each node is one stage: a prompt, a transform (style ref, LoRA, model swap), a generation step, an output sink. You wire them together and run the whole pipeline. Change one node, re-run, see what shifts.
What's in the box
- Editor: a Vue Flow canvas where designers drag nodes, connect ports, and inspect intermediate results.
- Runtime: a tRPC orchestrator that schedules each node, calls the right model provider (fal.ai for image gen, Gemini for vision + reasoning), streams progress back to the canvas, and persists everything to Postgres.
- Workspace: each project is a versioned graph + a gallery of every run. Branch, fork, compare.
- Billing: Paddle on top, metered per generation. Free tier for play, paid for serious runs.
Stack decisions worth defending
Nuxt 4 over Next. This is a heavy editor app, not a content site. Vue's reactivity model is a better fit for canvas state — fewer footguns, less code. Server components were tempting but the editor is fundamentally client-side anyway. Nuxt's auto-imports and file-based server routes get out of the way.
tRPC over REST. End-to-end type safety on a tightly-coupled monorepo eliminates a whole class of bugs. The runtime is the only consumer of the API; there's no public surface to design around.
Prisma + Postgres on Neon. Boring is good. Branching databases per Vercel preview deploy is the killer feature — every PR gets its own DB snapshot.
Vue Flow. The graph editor is the product. Vue Flow gave me a working canvas in 4 hours; building one from scratch would have cost 4 weeks. The downside (limited custom edge routing) was easy to live with.
fal.ai over running my own GPUs. Per-generation pricing means I pay only for actual use. When I'm sleeping, I'm not paying for an idle A100.
What I'd do differently
- I should have shipped the v0 with three nodes, not seven. Each extra node type is a UX surface that has to be designed. I burned two weeks on a "loop" node nobody asked for.
- The undo history is per-graph, not per-edit. Means coarse-grained undo. Should have been an event-sourced log from day one.
- Auth via Clerk was the right call, but I should have set it up before the schema. Retrofitting
userIdonto every table is a chore.
Numbers
- Time to v0: 6 weeks, solo.
- Time to first paying user: 9 weeks.
- Median pipeline run latency: 8.4s end-to-end.
- Bundle size: 312KB gzip for the editor.
